Reducing MOSFET Noise

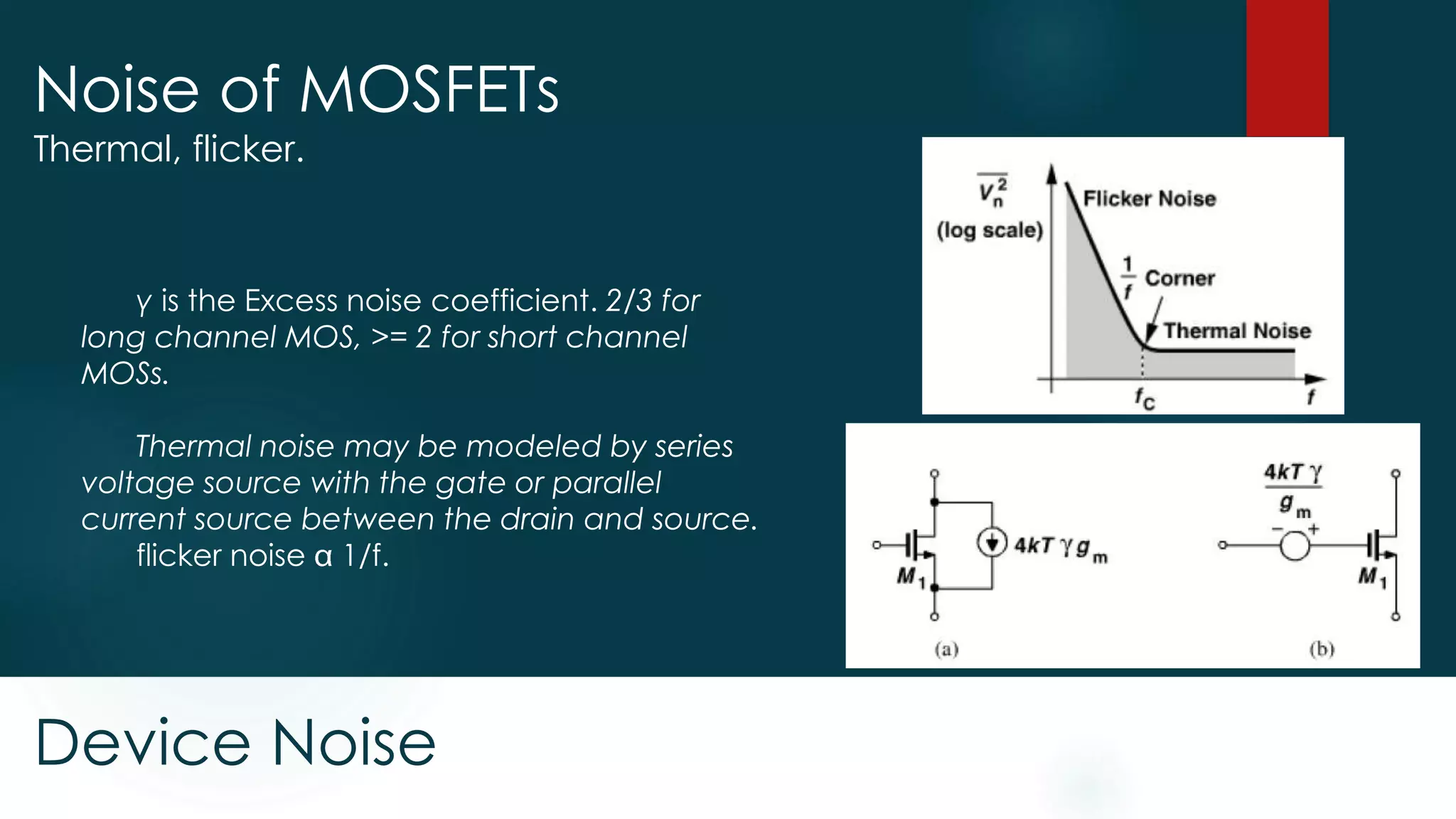

2. Time to Silence the Hiss
Now for the good stuff: how to actually reduce MOSFET noise. First off, smart circuit design plays a huge role. Using differential amplifier configurations, for instance, can help cancel out common-mode noise (noise that affects both inputs equally). This is because the differential amplifier amplifies the difference between the two input signals, effectively rejecting any noise that’s present on both.
Another design trick is to use larger MOSFETs, especially in the input stage of an amplifier. Larger transistors generally have lower noise figures. The reason? Think of it like this: a larger transistor has a bigger “bucket” to collect electrons. With more electrons flowing, the relative impact of individual noise events is lessened, resulting in a lower overall noise level.
Also, don’t underestimate the importance of proper biasing. Careful selection of bias currents and voltages can minimize certain types of noise, especially flicker noise. The optimum bias point depends on the specific MOSFET and the circuit application, so experimentation and simulation are your friends here.
Finally, keep your circuit layout clean and organized. Minimize parasitic capacitances and inductances, which can act as noise antennas. Use ground planes and shielding to protect sensitive components from external noise sources. Think of it as building a Faraday cage around your sensitive circuitry.
3. Component Selection
The type of MOSFET you choose also significantly impacts noise performance. Different MOSFET technologies (e.g., planar, trench, FinFET) have different noise characteristics. Generally, MOSFETs with higher transconductance (gm) tend to have lower noise. Consult datasheets carefully and compare noise figures (e.g., noise voltage density, noise current density) for different devices.
Resistors also contribute to noise (thermal noise, specifically). Choose low-noise resistors (e.g., metal film resistors) in critical areas of the circuit. Also, remember that resistors in series add noise, so minimizing the number of resistors in sensitive signal paths is a good practice.
Capacitors, especially electrolytic capacitors, can sometimes introduce noise due to dielectric absorption. Consider using ceramic capacitors or film capacitors in noise-sensitive areas. These types of capacitors have lower dielectric losses and therefore contribute less noise.
In short, become a discerning component shopper. Don’t just grab the cheapest parts available. Spend a little extra time researching and selecting components with low-noise characteristics. Your ears (or your signal analyzer) will thank you.
4. Filtering and Shielding
Filtering is a powerful tool for reducing noise. You can use low-pass filters to block high-frequency noise, high-pass filters to block low-frequency noise (like that pesky flicker noise), or band-pass filters to isolate a specific frequency range of interest.
Shielding involves surrounding noise-sensitive components or circuits with a conductive enclosure to block electromagnetic interference (EMI). Grounding the shield is crucial for it to work effectively. Think of it as building a suit of armor for your delicate electronics.
Proper grounding is essential for minimizing noise. Use a star grounding scheme to avoid ground loops, which can introduce noise into the circuit. Also, make sure that all connections are clean and secure to minimize contact resistance, which can also contribute to noise.
Finally, consider using power supply decoupling capacitors to filter out noise from the power supply rails. Place these capacitors as close as possible to the MOSFETs to provide a low-impedance path for high-frequency noise currents. A stable and clean power supply is the foundation of a low-noise circuit.
